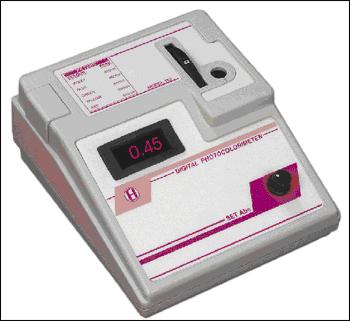

MODEL

313

WAVE LENGTH RANGE

400 to 700 nm

RESOLUTION

0.01

ABSORBANCE

0 – 1.99A

PHOTO DETECTOR

Silicon Photodiode / Photo Cell

DISPLAY

 2½ digit LED

LIGHT SOURCE

6.8V, 0.3Amp. Tungsten lamp

SAMPLE SYSTEM

10mm path length matched glass test tubes

HIGH STD. GLASS FILTERS

 8 (Model 312), 5 (Model 313)

FILTERS

 8 Filters : 400, 420, 480, 500, 520, 540, 620, 680nm

5 Filters

:420, 480, 540, 620, 680nm

WEIGHT

 2.5 Kg. (Approx.)

POWER SUPPLY

230V AC ±10%, 50Hz. with in-built Stabilizer

ACCESSORIES

Test Tube Set of 5, spare Light Source, Dust Cover, Instruction Manual.
