Flamephotometer Digital Clinical 391

SALIENT FEATURES

Dual Channel
Mixing Chamber designed for stable flame?
Stainless Steel round Burner?
Concentric Non –Corrosive Nebulizer?
Narrow Band Interference Filter?
Dual 2½ digit red LED display

TECHNICAL SPECIFICATION

RANGE
Sodium (Na)
serum 0-200 meq/I
Urine 0-200 meq/I
Lithium (Li) :
Serum 0-2 meq/I (Optional)
Potassium (K) :
serum 0-10 meq/I :
Urine 0-100 meq/I
Calcium (Ca) :
Urine 0-10 meq/ I (Optional)

READOUT Dual 2½ digit bright red LED display
ACCURACY + 2% up to 40 ppm, + 5% above 40 ppm
IGNITION SYSTEM In –built electronic ignition by press of a Knob
DIMENSIONS 365 x 245 x 220mm (Approx.)
WEIGHT 10Kg. (Approx.)
MEASUREMENT SYSTEM Simultaneous measurement of 2 elements on Dual LED
REPEATABILITY + 2 Counts
DETECTOR Silicon Photodiode
FITLER Narrow band interference glass filters
NEBULIZER Black bakelite, axial flow type
FLAME SYSTEM LPG & dry oil free air
WARM UP TIME 10 minutes
POWER 230V + 10% AC, 50Hz.

COMPRESSOR UNIT

AIR SUPPLY By oil free mini compressor unit with pressure regulator
COMBUSTION GAS LPG Controlled by precision regulator
POWER 230V + 10% AC, 50Hz.
DIMENSIONS 275W X 192H X 240 D mm (Approx.)
WEIGHT 8Kg. (Approx.)

This product was added to our catalog on Monday, July 21, 2008

Add to my selection | Enquire All Selected Products (0 Products)

Product Images

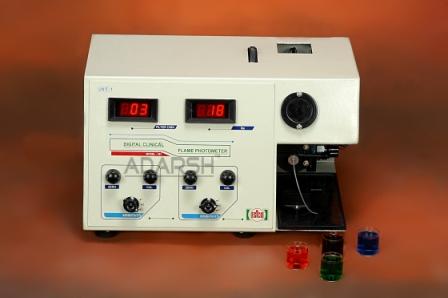

Flamephotometer Digital Clinical 391
